Adhesive Anchor DesignTM

Optimized epoxy connection solutions for threaded anchors post-installed into concrete.

Free Download

Overview

Adhesive Anchor Design

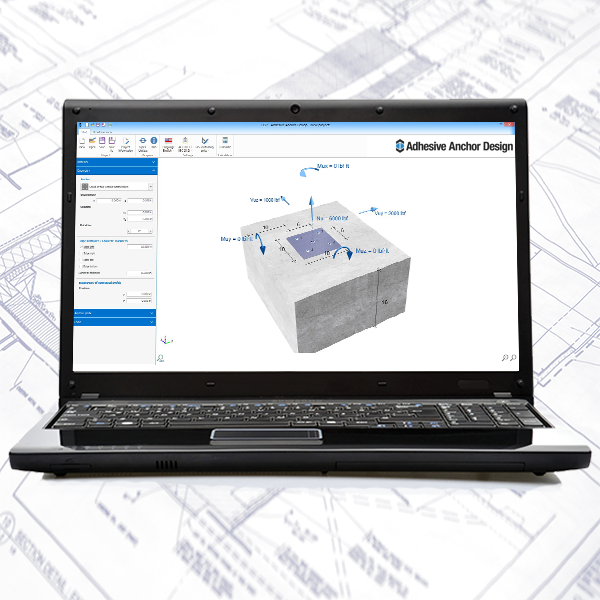

Adhesive Anchor Design is powerful design software that provides optimized epoxy connection solutions for threaded anchors post-installed into concrete. The software determines the required anchor rod steel grade, diameter and effective embedment depth based on applied factored tension, shear and moment loads.

Laptop Backdrop

Overview

Play Icon
icon-design-rule
Designs Connections

Designs Adhesive Anchor connections using CIA-GEL 7000-C epoxy.

icon-page
Compliant

Compliant to the 2012 IBC code requirements.

icon-3d-bim
Reports

Creates a comprehensive design report that can be emailed as a PDF for job submittal.

icon-house-project
Seismic Design Categories

Allows high seismic regions (Seismic Design Categories (SDC) C, D, E and F).

features

Powerful anchor design software.

  • Designs Adhesive Anchor connections using CIA-GEL 7000-C epoxy
  • Compliant to the 2012 IBC code requirements
  • Solutions are based on ACI 318-11 Appendix D
  • Good for normal weight cracked and un-cracked concrete with or without steel reinforcement
  • Allows high seismic regions (Seismic Design Categories (SDC) C, D, E and F)
  • Accommodates up to eight threaded anchors
  • Bolt group profile can be eccentric to anchor plate
  • Creates a comprehensive design report that can be emailed as a PDF for job submittal
  • Has French and Spanish language option
  • Automatically scans for software updates and will alert user when updates are available¬†
